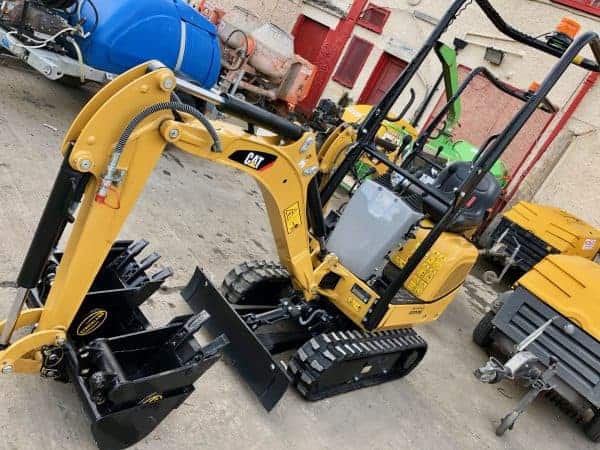

DIGGER CAT 300.9D 0.8T

COMPACT DIMENSIONS 730MM (29")

Mini Digger with 29″ / 750 mm wide

Hire from: €125 (incl. VAT)
SKU: DIG3
This product appears in:


Description

A-Z Hire is where to hire a mini micro digger with an overall width of only 730 mm (2 ft 5 in)

The CAT® 300.9D can easily drive through narrow passages and doors.

Both indoor and outdoor jobs are now accessible with the under 1000 kg (2,205 lb) weight making easy trailer transportation between sites possible.

Extending Undercarriage and Blade
An extending undercarriage and fold out dozer blade allow the machine to be configured for excellent working stability and optimum performance. Easy retraction, controlled from the operator’s seat, enables the machine to pass through narrow openings.

Foldable Safety Frame
A protective ROPS safety frame structure mounted on the front of the machine allows fitting of a guard for extra operator protection during hammer use. The structure folds down in a few seconds for easy machine transportation and storage.

User Friendly Operation
Simple Controls (Ease of Use)
The operator area is spacious and laid out to provide comfort and ease of operation. Smooth, precision operation of functions is possible from independent controls allowing all skill levels to be productive with little practice.

Extending Dozer Blade
Blade extensions simply rotate and lock into position allowing the machine to be quickly configured for narrow width or maximum blade coverage. Locking pins and extension plates are retained with the machine to reduce potential for lost or damaged components.

Technical Information

Technical Data
Operational Data

Digging Force – Bucket8.9 kN
Digging Force – Stick4.5 kN
Operating Weight – With Safety Frame 985.0 kg
Operating Weight – Without Safety Frame 935.0 kg
Engine

Engine ModelYanmar 31NV70
Net Power 9.6 kW
Rated Speed 2100.0 r/min
Battery12 V, 20 Amp
Diesel Tank Volume10.0 l
Displacement854.0 cm³
Flywheel Output ISO9.6 kW
Gross Power – ISO 1439613.7 kW
Make/TypeYanmar 31NV70
Maximum Engine Output13.7 kW
TypeWater cooled model 3-cylinder diesel engine
Weights

Operating Weight 935.0 kg
Operating Weight – With Safety Frame985.0 kg
Operating Weight – Without Safety Frame935.0 kg
Dimensions

Boom Swing Angle – Left55.0 °
Boom Swing Angle – Right56.0 °
Height – With ROPS Safety Frame Folded Down1507.0 mm
Height – With ROPS Safety Frame Unfolded2276.0 mm
Length – Undercarriage 1220.0 mm
Maximum Dig Height 2863.0 mm
Maximum Digging Depth 1731.0 mm
Maximum Dozer Dig Depth 174.0 mm
Maximum Dozer Lift Height 197.0 mm
Maximum Dump Height 2035.0 mm
Maximum Reach3074.0 mm
Maximum Reach – Ground Level3023.0 mm
Maximum Vertical Dig Depth1349.0 mm
Minimum Front Linkage Swing Radius1150.0 mm
Tail Swing Radius736.0 mm
Track Width180.0 mm
Transport Length – Arm Lowered2746.0 mm
Undercarriage Width – Extended864.0 mm
Undercarriage Width – Retracted711.0 mm
Width730.0 mm
Hydraulic System

Pumps2 gear pumps
Discharge Capacity11.4 + 11.4 L/min (3 + 3 gal/min)
Hydraulic Tank Capacity14.0 l
Operating Pressure Pivot70.0 bar
Operating Pressure for the Work and Travel Hydraulics170.0 bar
Chassis and Swivel Gear

Gradeability30°/58%
Ground Clearance127.0 mm
Ground Pressure0.25 kg/cm²
Machine Swing Speed8.0 r/min
Number of Rollers – Each Side2
Track Width180.0 mm
Travel Speed1.8 km/h
Operating Specifications

Machine Overhang318.0 mm
Stick Length – Standard890.0 mm
Dozer Blade

Dig Depth174.0 mm
Height200.0 mm
Lift Height197.0 mm
Width700.0 mm
Noise Emissions

Sound Power Level (LWA) (to 2000/14/EG)93.0 dB(A)
